| Dimension ( L*W*H) |
2005x755x1350mm |
| Wheelbase |
1370mm |
| Motor |
5000W |
| Max speed |
96KM/H |
| Acceleration(0-50m) |
3.5S |
| Climbing |
25° |
| Maximum load |
160kg |
| Max .range |
80-100 km |
| Rated output torque |
30N.m |
| Front suspension height |
650mm |
| Rear shock absorption height |
330mm |
| Chassis height |
180mm |
| Rated voltage |
72V |
| Rated rpm |
1632 r/min |
| Charger input power voltage/frequency |
220V/50Hz |
| Brake |
Front disc / rear drum |
| Brake handling mode(Front&Rear) |
By hand/foot |
| weight |
170KG(without battery) |
| Battery |
76V80Ah lithium battery |
| Tyre size(Front & Rear) |
3.0-17, 100/90-17 |
| Brake handling mode |
By hand/foot |
It adopts a permanent magnet synchronous gear motor specially developed for electric motorcycles, with a compact structure, high energy density, and IP67 protection rating. The maximum power is 12KW/6800RPM, and the maximum torque is 400N.m. Equipped with an automotive-grade FOC controller, its power surpasses that of a traditional 150CC gasoline engine, with strong start-up, fast acceleration, and strong passenger and cargo carrying capacity. It can handle long slopes, steep slopes, and gravel roads with ease. The power consumption is as low as 4KW.H/100KM (WMTC condition). The range measured at a speed of 45~55KM/H on paved roads under mixed road conditions, with a single rider (85KG), is 100~120KM.
The high-strength steel tube woven frame structure, specially developed for electric motorcycles, has significant advantages in frame rigidity and lightweight design. It provides excellent protection, support, and stability for the vehicle's power platform and battery platform, and hardly deforms during aggressive driving such as fast cornering. Under a load of 300KG, the frame has passed 500,000 bench vibration tests.
The vehicle battery compartment can support dual batteries connected in parallel, with 76V 80Ah batteries placed front and rear. The maximum output power of the motor is determined by the maximum discharge current allowed by the BMS.

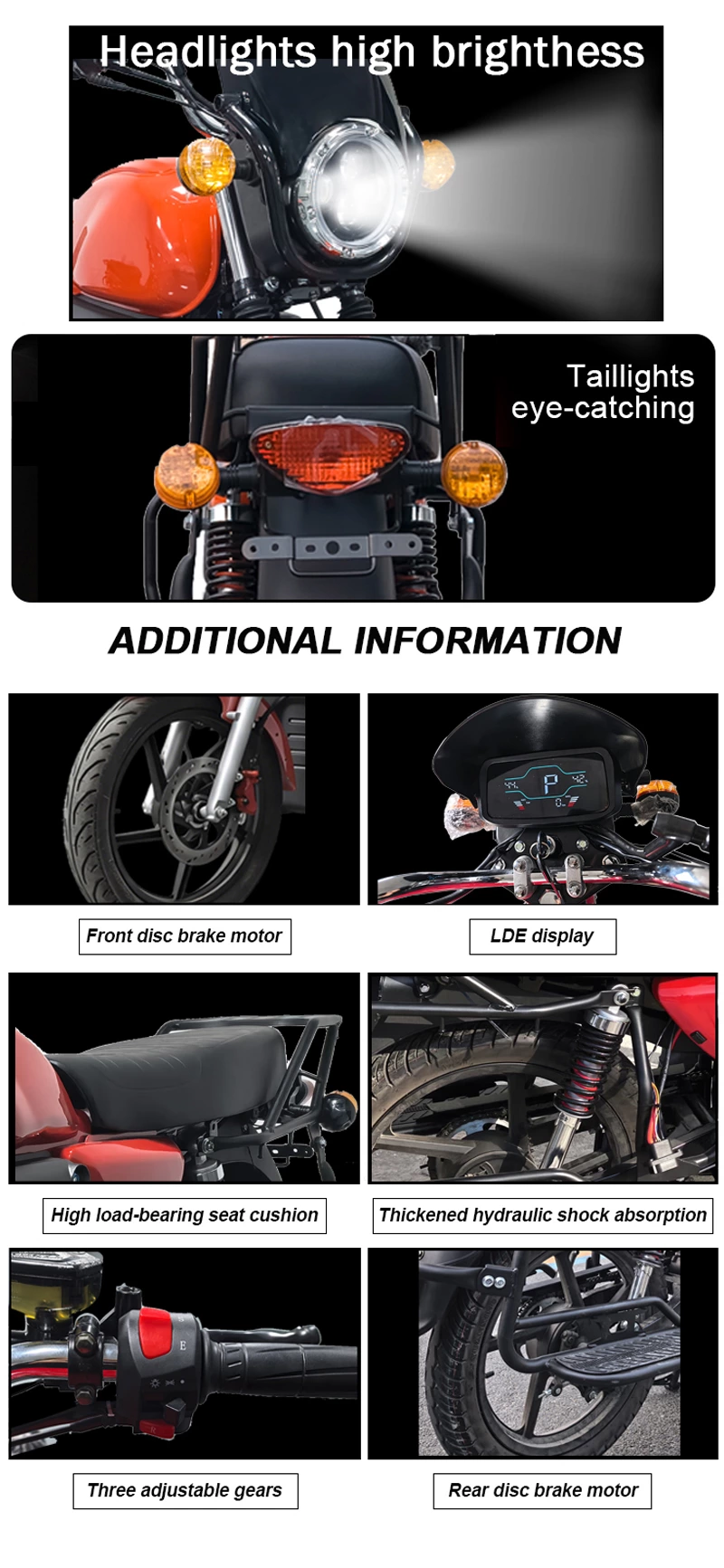

The digital multi-function instrument panel provides clear readings even in bright light, allowing you to easily see information such as vehicle gear position and battery level, and facilitating maintenance.
It adopts a front disc and rear drum braking system. In addition, the motor and controller provide EBS function, which can provide additional braking force when the vehicle is braking, effectively shortening the braking distance. Users can also choose to equip it with front and rear dual discs, or install an ABS system as needed.
Large-capacity lockable storage boxes provide riders with ample personal storage space.
The riding posture is comfortable, allowing both feet to easily touch the ground, and the riding posture is ergonomically designed. It features electronic two-level adjustment, providing both economy and sport modes. Whether carrying passengers, hauling heavy loads, or riding alone, passengers can find a comfortable position, ensuring riders don't get tired even after long rides and providing effortless control.
