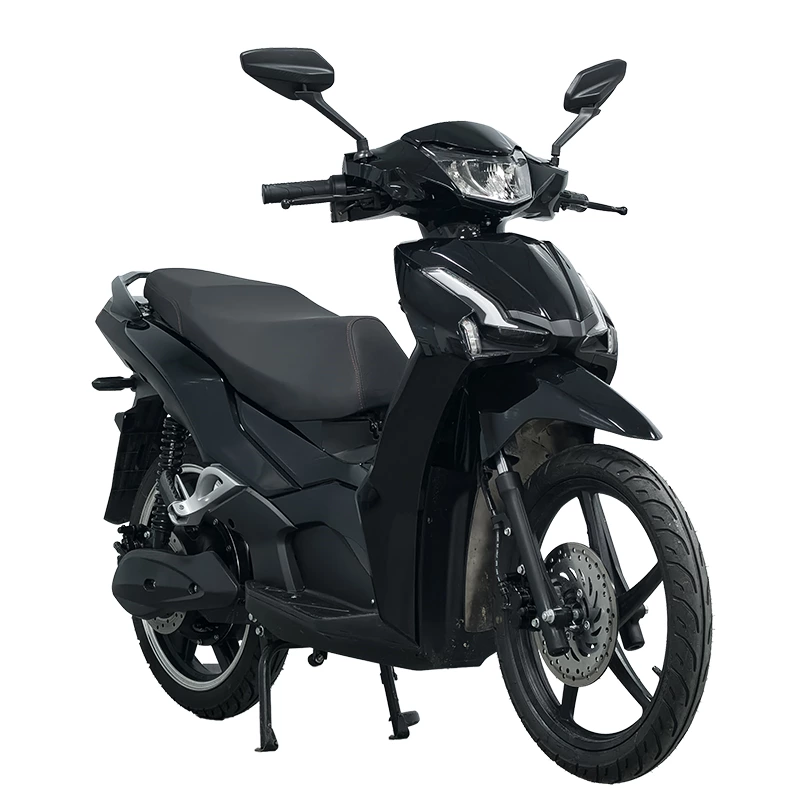

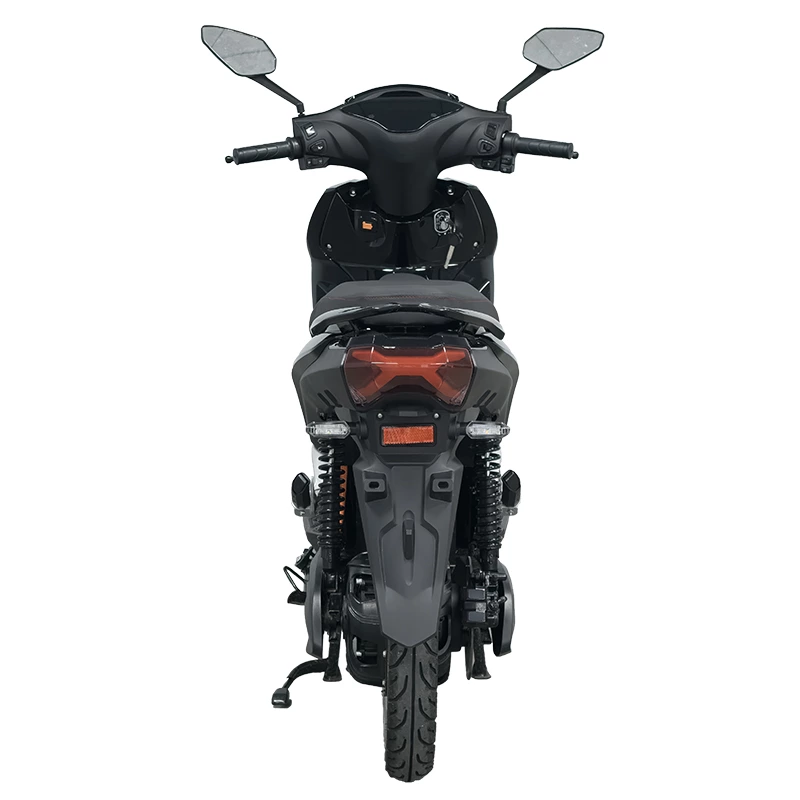

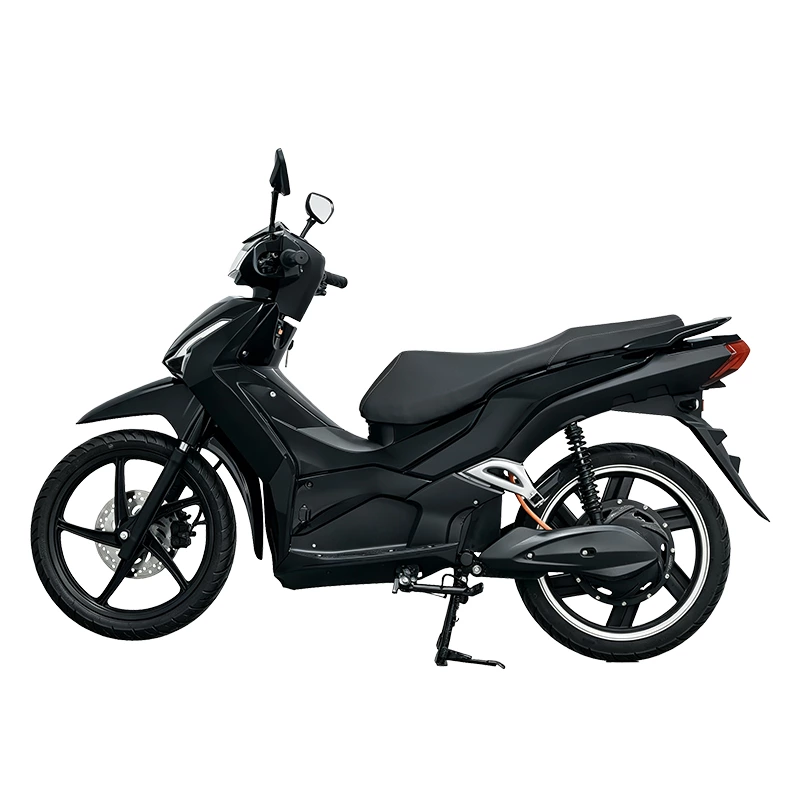

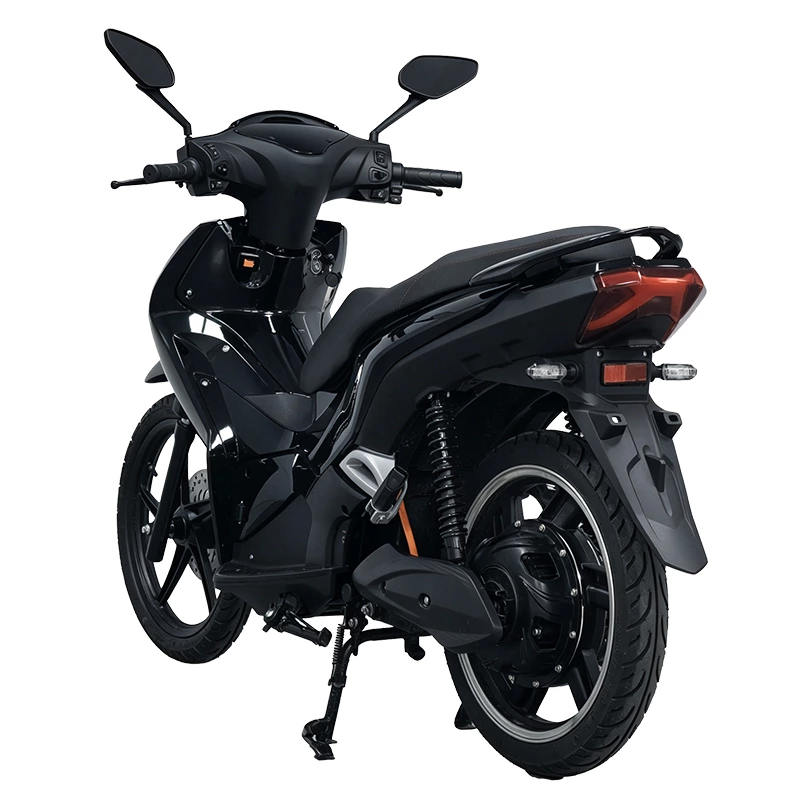

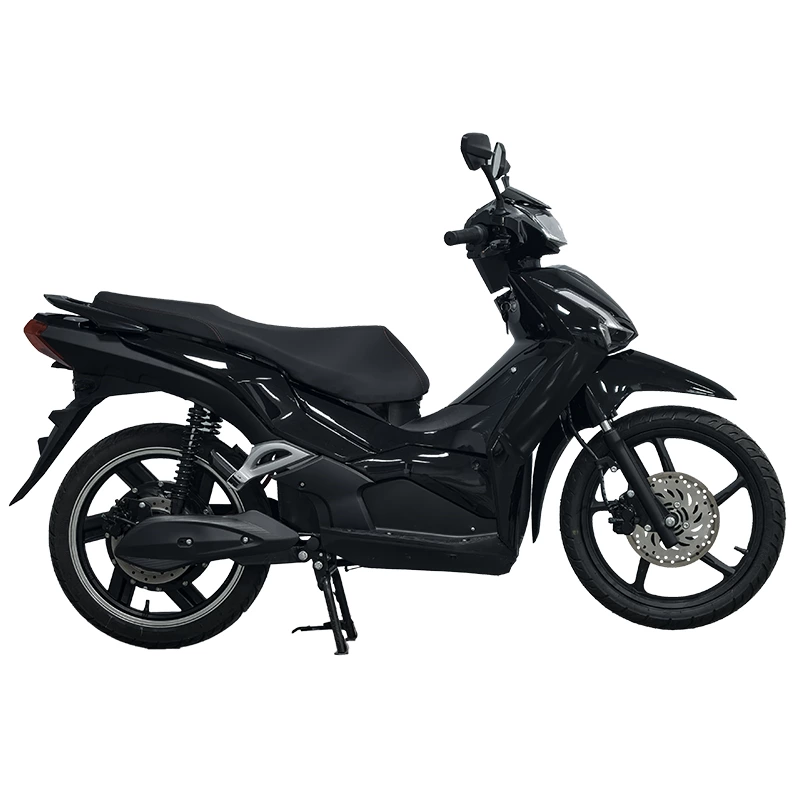

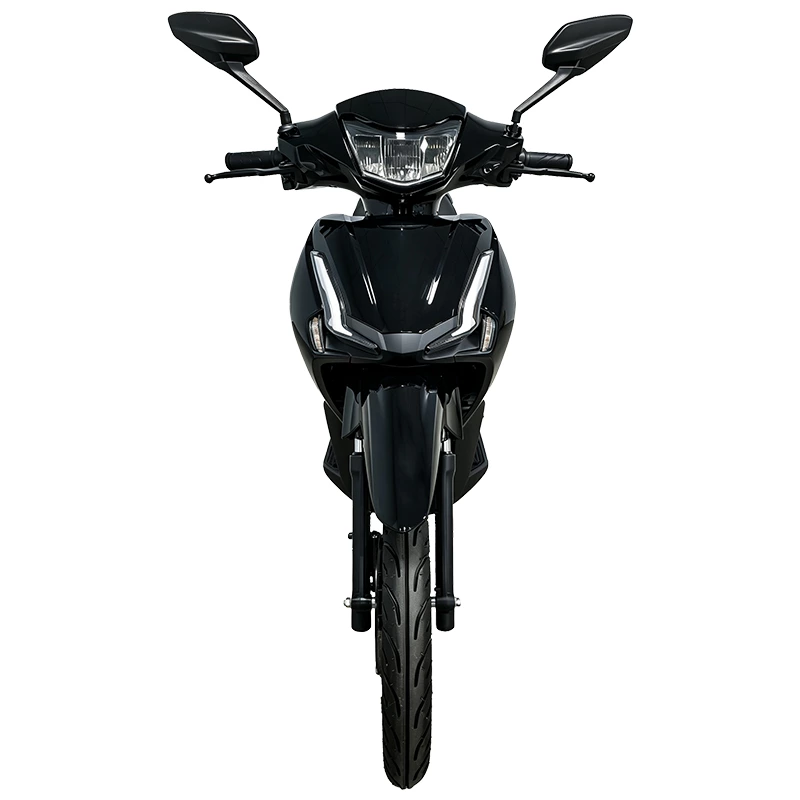

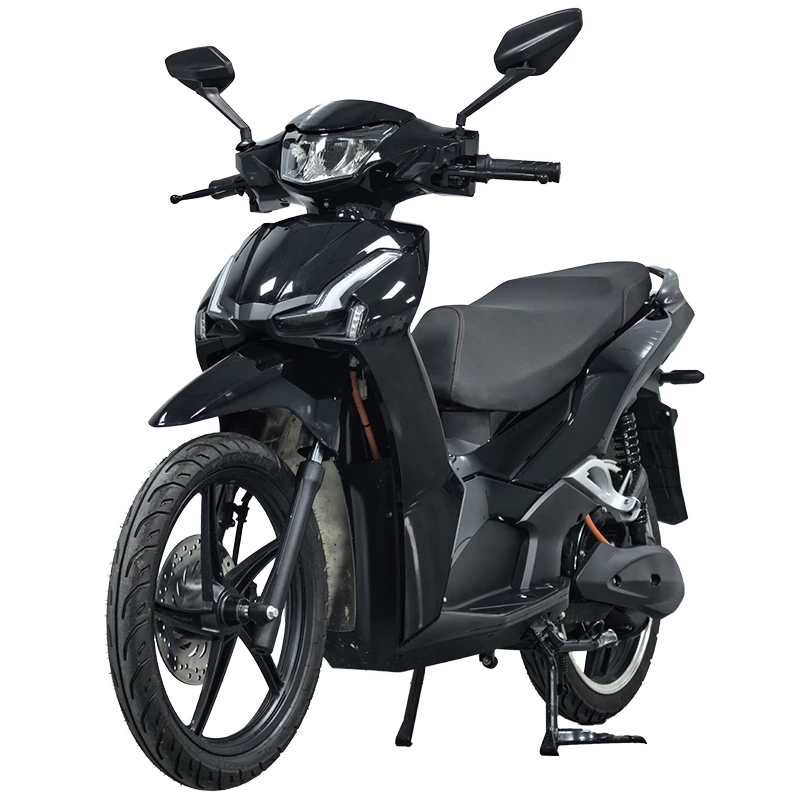

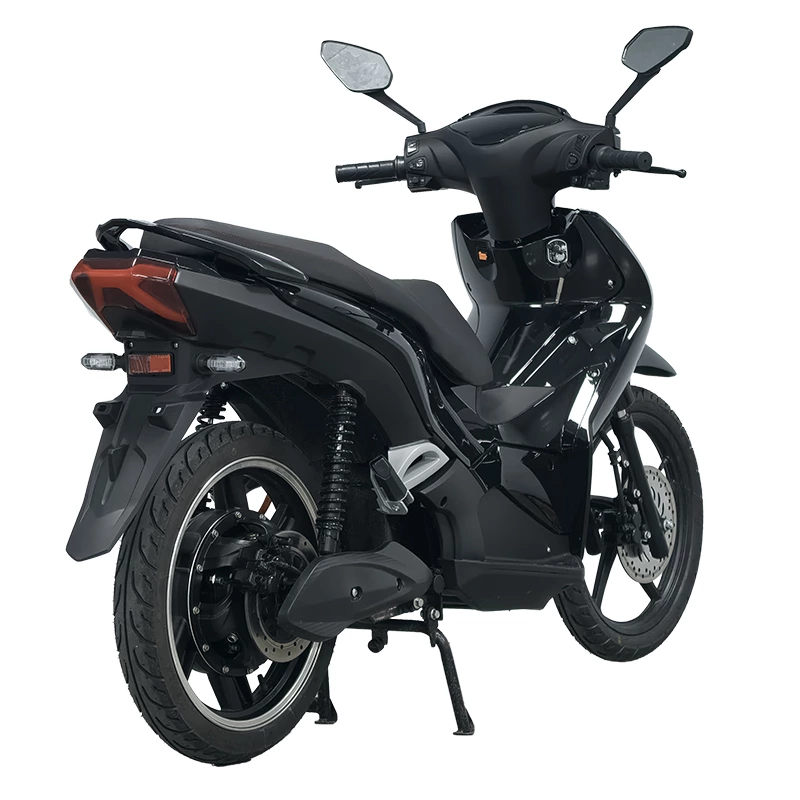

Underbone motorcycle
Motor Optional:5000W
Speed:80km/h
Range:95km
Maximum Battery Capacity: 76V40Ah Lithium Iron Phosphate Battery
Brake:Front Disc Rear Disc
Tyre: front 2.75-17，rear 2.75-17
Motor Optional:5000W
Speed:80km/h
Range:95km
Maximum Battery Capacity: 76V40Ah Lithium Iron Phosphate Battery
Brake:Front Disc Rear Disc
Tyre: front 2.75-17，rear 2.75-17
| Dimension ( L*W*H) | 1970x680x1120mm |
| Wheelbase | 1290mm |
| Motor | 5000W |
| Max speed | 80KM/H |
| Working temperature | -20℃,70℃ |
| Transmission mode | Rear wheel direct drive |
| Maximum load | 210kg |
| Max .range | 130 km |
| Peak torque | 400N.m |
| Shift mode | button |
| Maximum efficiency | 93≥% |
| charging current | 40A |
| Rated voltage | 76V |
| Rated rpm | 1300 r/min |
| charging voltage | 86.8V |
| Brake | Front disc / rear disc |
| Continuous discharge current | 80A |
| weight | 86KG(without battery) |
| Battery | 76V40Ah Lithium Iron Phosphate Battery |
| Tyre size(Front & Rear) | 2.75-17，2.75-17 |
| peak power | 10080w |
